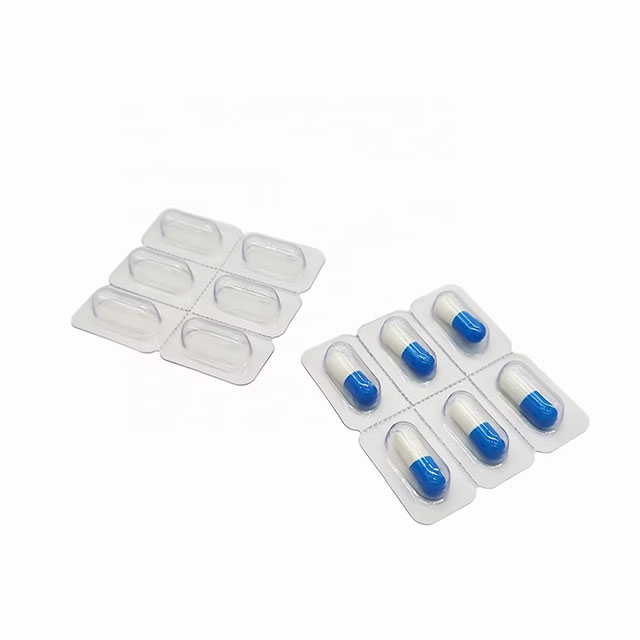

Packaging delays often create the most common bottlenecks in medical device commercialization. Engineering teams pour millions into product research, only to watch timelines stall because the packaging fails testing. A Custom Medical Device Tray acts as far more than a simple plastic container. It serves as a vital, engineered component of the sterile barrier system. This system protects patients from severe infections. Designing it requires highly precise inputs. You must avoid costly tooling redesigns, catastrophic regulatory failures, or transit damage.
To secure an accurate quote and accelerate the design-to-distribution journey, teams must supply specific data upfront. Providing your packaging partner with exact physical, regulatory, and sterilization parameters ensures a smooth rollout. Without this data, projects face endless revisions. Read on to discover exactly what technical details you need to gather before initiating your next packaging project.
The foundation of any successful packaging project relies on precise physical data. You must gather this information to prevent physical product failure during transit and handling. A well-designed custom medical device tray suspends and protects the instrument. If you guess the dimensions, the device will rattle, scuff, or pierce the sterile barrier.
Manufacturers cannot design a secure tray using just 2D drawings or photographs. They need accurate spatial data. You should provide detailed 3D CAD models of the device and all associated accessories. Acceptable formats usually include STEP or IGES files. These files allow engineers to map the exact contours of your instrument.
Physical prototypes allow engineers to verify the fit in real time. Virtual models are great, but physical testing reveals hidden interference points. You must drop-test the loaded tray to ensure the instrument stays locked in place.
Uneven weight distribution causes severe packaging failures. Imagine placing a heavy orthopedic hammer inside a thin plastic shell. If you ignore the center of gravity, the tray will buckle. Heavy components require deeper cavities. Sometimes they demand thicker gauge materials. Identifying these heavy zones early prevents tray deformation. Engineers can design stabilizing ribs around the heaviest parts. This structural reinforcement ensures the tray remains rigid when nurses handle it.
Every medical device features vulnerable zones. You must map these delicate areas before design begins. Consider catheter tips, fragile optical lenses, or sharp surgical edges. These elements require specific retention features. Engineers use suspension techniques to float delicate tips in mid-air. They utilize undercuts to snap the device firmly into the cavity. Mapping these fragility points dictates the entire thermoforming geometry.
Common Mistake: Failing to include secondary accessories (like tubing or instruction booklets) in the initial spatial planning. This forces engineers to cram parts together later, risking abrasion.
Sterilization dictates material science in the medical packaging industry. You cannot separate the two. Incorrect material choices lead to melting, embrittlement, or toxic outgassing. The polymer you select must survive the sterilization chamber while maintaining structural integrity.
The modality you choose instantly narrows your polymer options. You must specify this requirement in your initial design brief.
Ethylene Oxide (EtO): This gas sterilization method requires highly breathable lid-stock, such as Tyvek. The tray material must allow gas permeation and outgassing. PETG is an excellent choice here. It withstands the process without warping.
Gamma and E-Beam Irradiation: Radiation breaks down certain plastics. You must choose radiation-stable materials to prevent yellow discoloration or extreme brittleness. Polyurethane and specific grades of PETG perform well under radiation.
Autoclave (Steam): Steam sterilization introduces intense heat and moisture. Standard plastics will melt or warp instantly. Autoclave processes necessitate high-heat tolerance materials. Polycarbonate stands out as the industry standard for steam resistance.
Table Title: Common Sterilization Modalities and Polymer Compatibility
| Sterilization Method | Preferred Tray Material | Key Design Consideration |
|---|---|---|
| Ethylene Oxide (EtO) | PETG, APET | Requires breathable Tyvek lid-stock for gas exchange. |
| Gamma / E-Beam | Radiation-stable PETG | Material must resist yellowing and embrittlement. |
| Autoclave (Steam) | Polycarbonate | Must withstand high temperatures without warping. |
The tray never functions in isolation. It forms the foundation of the Sterile Barrier System (SBS). You must detail exactly how the tray interfaces with sealing equipment. Will you use a breathable lid-stock? Will the tray slide into an outer foil pouch? The flange design depends entirely on your sealing method. A flange that is too narrow will cause seal creeping. You must provide your packaging partner with the exact specifications of your heat-sealing platens.
Regulatory bodies treat packaging as an integral part of the medical device itself. The FDA and MDR do not view the tray as an afterthought. Documentation and testing criteria must be established long before design begins. Skipping this step guarantees product recalls.
You must outline your testing protocols during the initial consultation. Engineers design the tray specifically to pass these extreme stress tests.
Contamination control is non-negotiable. You must determine if your tray requires Class 7 or Class 8 cleanroom manufacturing. This decision relies entirely on the device's risk classification. Implantable devices require strict Class 7 environments to monitor particulate counts. Surface-level diagnostic tools might only need a Class 8 cleanroom. Defining this upfront helps you select the right manufacturing partner.
Your contract packager must maintain an established Quality Management System (QMS). Look for strict ISO 13485 certification. This certification ensures complete raw material traceability. If a specific batch of polymer fails in the field, you must trace it back to the exact extrusion date. Without ISO 13485 procedures, you carry immense regulatory risk.
Best Practice: Always request a copy of your vendor’s ISO certificates and recent audit summaries before signing a tooling agreement.
A highly compliant tray that frustrates the surgical team represents a failed design. The end-use application dictates ergonomic necessities. You must think about the nurse opening the package in a high-stress environment.
Different medical fields require entirely different packaging logic. You must clearly define the various custom medical device tray applications your product falls under. Orthopedic implant kits require heavy-duty trays featuring multiple compartments for screws and plates. Multi-component surgical procedure trays require a sequential layout. Diagnostic kits prioritize compact design and rapid extraction. Communicating the exact medical procedure helps engineers design an intuitive layout.
How will the nurse or surgeon interact with the tray? This question drives the entire ergonomic concept. Aseptic presentation is critical in the operating room. A circulating nurse must peel back the lid and present the sterile tray to a scrub nurse without touching the inside.
You must provide information regarding gloved-hand accessibility. Deep finger-notches allow a surgeon to grasp a slippery device securely. Intuitive device extraction prevents dropping or contamination. If a device snaps into the tray too tightly, the nurse might struggle to remove it. This struggle can cause the instrument to fly across the sterile field.
Hospital storage space is incredibly expensive and limited. You must consider nesting and stacking requirements. Trays should nest inside one another during shipping to reduce freight costs. Once loaded and sealed, they must stack securely on hospital inventory shelves. Specify your maximum carton dimensions early. This prevents engineers from designing a tray that is half an inch too wide for standard hospital storage racks.
Commercial misalignment kills more projects than bad engineering. You must align commercial expectations early to avoid budget overruns and timeline friction. Be completely transparent about your timeline and volume expectations.
Engineers need accurate volume projections to select the correct tooling method. You must distinguish between initial validation run quantities and expected annual volume.
If you only need 500 units for clinical trials, cheaper prototype tooling (often machined from polyurethane or basic aluminum) works perfectly. However, if you project an annual volume of 500,000 units, you must invest in temperature-controlled aluminum production tooling. Production tools run faster, yield better consistency, and last longer. Trying to run high volumes on prototype tools leads to thermal warping and massive defect rates.
Establishing hard dates keeps the project moving. Delays cascade quickly in packaging design. You must outline a realistic schedule.
Chart Title: Typical Packaging Project Timeline Benchmarks
| Project Phase | Expected Duration | Required Client Input |
|---|---|---|
| Design & CAD Approval | 1 - 2 Weeks | Device 3D files and accessory list. |
| 3D Printed Prototypes | 1 Week | Physical device for test-fitting. |
| Tool Cutting & First Articles | 3 - 5 Weeks | Sign-off on prototype fit and material gauge. |
| Validation Runs (OQ/PQ) | 2 - 4 Weeks | Testing protocols and sterile barrier parameters. |
You must factor in Operational Qualification (OQ) and Performance Qualification (PQ) validation runs. These steps prove the manufacturing process is repeatable. Do not compress validation timelines, as this invites regulatory scrutiny.
Discuss your budgetary constraints transparently. Upfront tooling costs can surprise procurement teams. However, spending more on multi-cavity production tooling drastically lowers your piece-price unit costs. You must evaluate the trade-off between capital expenditure today and unit savings tomorrow.
Choosing the right vendor determines the success of your launch. You need a decision-stage framework for choosing a vendor capable of executing complex design requirements. If your project demands a highly specialized, custom custom medical device tray, rigorous vendor evaluation is mandatory.
Not all thermoforming companies understand medical compliance. You must evaluate them across three strict dimensions.
In-house capabilities: Ask if they rely on third parties for tooling design and CNC milling. Vendors who control tooling in-house reduce risk and compress timelines significantly. Outsourcing tooling adds weeks of delay during the revision process.
Quality assurance: Demand evidence of strict raw material traceability. Ask to see their validation protocols. A reliable partner employs dedicated quality engineers who guide you through the OQ/PQ validation maze.
Contract packaging services: Determine if they can handle the end-to-end journey. Some vendors only thermoform the plastic. Others offer comprehensive contract packaging services. They can thermoform the tray, load your device in a cleanroom, seal the Tyvek lid, manage sterilization, and handle final distribution. Consolidating these steps under one roof drastically reduces logistical headaches.
To get an actionable response, your initial Request for Quote (RFQ) must be comprehensive. Include your CAD files, expected annual volumes, chosen sterilization method, and cleanroom requirements. The more data you provide, the faster engineers can generate an accurate proposal.
Designing a reliable medical tray requires a proactive, front-loaded data approach. Packaging should never be an afterthought in your commercialization strategy. Bringing CAD files, sterilization requirements, and compliance standards to the table immediately mitigates downstream risks.
Taking these steps ensures your product reaches the patient safely and efficiently. Contact our engineering team for a packaging consultation today, or download our comprehensive Medical Tray RFQ Checklist to prepare your project data.
A: Engineering teams typically require STEP or IGES files. These universal 3D formats allow packaging designers to map the exact geometry, surface intersections, and center of gravity of your instrument. Supplying these files ensures accurate cavity drafting and proper device retention.
A: The prototyping phase generally takes one to two weeks after CAD approval. Facilities often use 3D printing or rapid CNC machining to create a polyurethane prototype tool. This allows you to test-fit the physical device before investing in expensive aluminum production molds.
A: Yes, if your tray forms part of the sterile barrier system. Depending on the device's risk classification, manufacturing must occur in an ISO Class 7 or Class 8 cleanroom. This controlled environment minimizes bioburden and particulate contamination prior to sterilization.
A: The sterilization method dictates the material grade required. Standard PETG used for Ethylene Oxide (EtO) is generally more affordable. Conversely, steam autoclave sterilization requires high-heat tolerant polymers like Polycarbonate, which carry a higher raw material price point.
