Selecting the ideal material for a product goes far beyond basic packaging aesthetics. It serves as a critical risk-management and cost-efficiency decision for food manufacturers operating in a highly competitive market. Selecting an incorrect substrate frequently leads to compromised shelf life, failed seal integrity, or severe regulatory compliance breaches. Ultimately, these missteps trigger catastrophic product recalls and waste substantial capital. To prevent such costly errors, you must understand exactly how different plastics and laminates behave under real-world conditions.
This comprehensive guide evaluates both standard and high-barrier materials based on their core performance metrics, strict compliance requirements, and exact application suitability. We provide the technical insights necessary to help your procurement and engineering teams shortlist the right substrates efficiently. By understanding these variables deeply, you ensure product safety while maintaining optimal operational efficiency on your packaging lines.
PET and PP dominate standard food applications due to clarity, cost-effectiveness, and baseline barrier properties.
High-barrier requirements (moisture/oxygen) necessitate multi-layer laminates like PVDC, EVOH, or Alu-Alu cold-form foils.
Regulatory compliance (e.g., FDA Title 21 CFR, EFSA) mandates strict migration testing for any material in direct food contact.
Designing custom food blister packaging requires balancing material rigidity with existing thermoforming line capabilities and sustainability goals (e.g., transitioning to rPET).
Choosing a plastic substrate goes far beyond merely protecting the physical product. It actively shapes your entire supply chain efficiency. When you evaluate Food Blister Packaging, you must thoroughly understand shelf-life economics. You cannot separate material science from business outcomes.
First, consider the direct impact of transmission rates. Water Vapor Transmission Rate (WVTR) measures moisture ingress over time. Oxygen Transmission Rate (OTR) tracks oxygen exposure. High WVTR and OTR numbers accelerate spoilage rapidly. They drastically reduce your safe distribution range. Selecting substrates based purely on unit price often invites disaster. We frequently see brands suffer high return rates due to early spoilage. You must align your material transmission rates precisely to your target shelf-life goals.
Operational compatibility presents another major hurdle. Material properties dictate machine run-ability. You must balance raw material expenses against manufacturing throughput. Consider these operational realities:
Thermoforming Temperatures: Some plastics require intense heat to form properly. This slows down cycle speeds and increases energy usage.
Cycle Speeds: Faster cooling times allow higher production volume. Choosing a slow-cooling plastic drastically impacts daily output.
Sealing Compatibility: The base web must bond securely to the lidding film. Poor adhesion causes micro-leaks during transit.
Finally, evaluate brand perception versus unit cost. Modern consumers demand high visibility. They want to inspect fresh foods clearly before purchasing. However, achieving maximum clarity often compromises tamper evidence or structural rigidity. You must strike a delicate balance here. High-clarity plastics usually carry premium prices. Conversely, highly sustainable options can introduce slight cloudiness. We recommend defining your non-negotiable brand values first. Then, select a substrate fulfilling those exact physical requirements.
Let us evaluate the standard solutions available to packaging engineers today. These core plastics dominate the broader food industry. They offer distinct manufacturing advantages alongside notable limitations. Understanding these traits prevents costly material mismatches.
Polyethylene Terephthalate (PET or APET) stands securely as the industry standard. It provides exceptional transparency for fresh food displays. It also boasts strong mechanical strength. PET resists impacts beautifully during rough shipping conditions. Furthermore, standard recycling facilities process it easily. We see it used heavily for baked goods, cold deli items, and salads. However, PET severely lacks high-temperature resistance. You cannot use it for microwaveable products. It warps and melts quickly under high heat.
Polypropylene (PP) solves the heat resistance problem entirely. It withstands microwave temperatures effortlessly. It also provides a remarkably robust moisture barrier. PP excels in fatigue resistance as well. You will often see it used for containers requiring durable living hinges. Unfortunately, PP brings specific manufacturing challenges. It shrinks significantly post-forming. Tooling engineers must calculate precise shrinkage tolerances into the molds. Additionally, forming highly clear PP containers proves difficult. It naturally appears slightly hazy compared to standard PET.
Polyvinyl Chloride (PVC) offers incredible cost efficiency. Manufacturers appreciate its easy thermoforming characteristics. It forms highly rigid, durable cavities quickly. In the past, it dominated the packaging market. Today, PVC faces heavy regulatory scrutiny. Environmental groups strongly oppose its usage due to toxic byproducts during disposal. Many global regions actively restrict PVC packaging now. Consequently, its usage in the food sector is declining rapidly. Most modern facilities favor PET instead.
Polystyrene (PS) serves specific, low-cost niches well. It works beautifully for single-serving dairy cups. Bakery trays often utilize PS for structural support. It forms easily and costs very little. However, standard PS is quite brittle. Manufacturers fix this by adding modifiers. This creates High Impact Polystyrene (HIPS), which drastically improves durability. Yet, both versions offer poor oxygen and moisture barriers. They only suit fast-moving perishables.
Material | Primary Strengths | Primary Weaknesses | Common Food Uses |
|---|---|---|---|
PET / APET | Exceptional clarity, strong impact resistance, highly recyclable. | Poor heat resistance; cannot be microwaved. | Fresh produce, bakery clamshells, deli trays. |

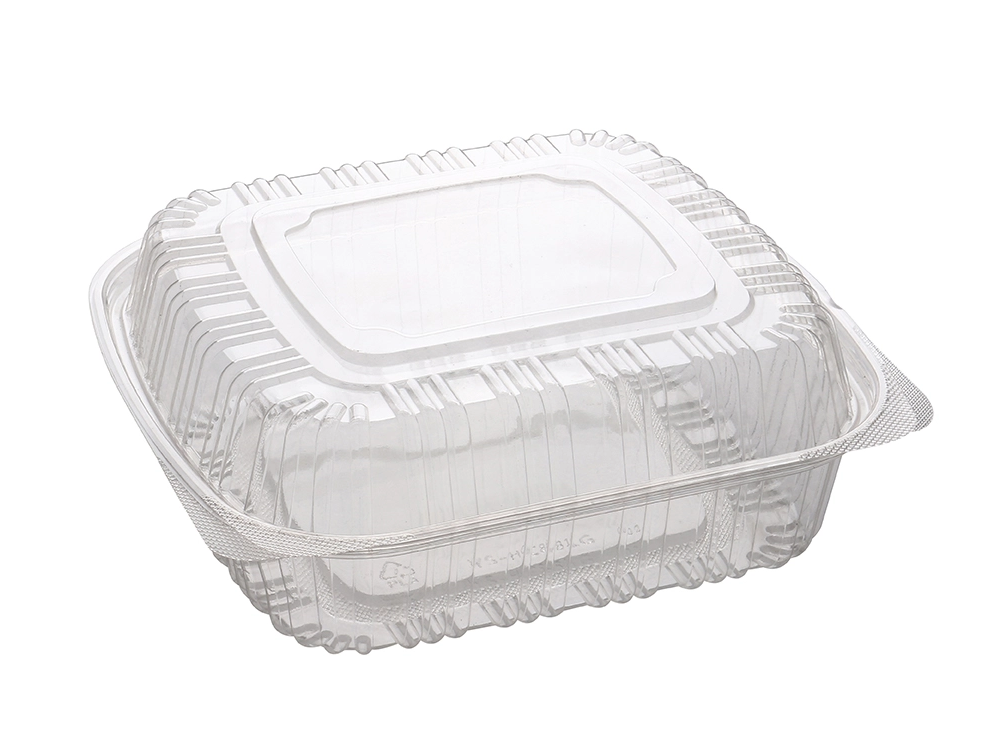

PP | Microwave-safe, excellent moisture barrier, strong living hinges. | Prone to shrinkage, lower visual clarity. | Hot food takeout, hinged containers. |
PVC | Cost-effective, highly rigid, very easy to thermoform. | Severe regulatory pushback, poor environmental profile. | Historically confectionery; rapidly declining. |
PS / HIPS | Very inexpensive, easy to form, rigid. | Brittle (without modifiers), poor barrier properties. | Single-serve dairy, lightweight bakery trays. |
Standard plastics fail to protect highly sensitive products over long durations. Certain foods require aggressive protection from ambient moisture and oxygen. In these exact cases, you must upgrade to high-barrier laminates. These multi-layer structures significantly extend product viability on store shelves.
Polyvinylidene Chloride (PVDC) coatings provide excellent secondary protection. Suppliers apply PVDC directly to PVC or PET base webs. This chemical coating drastically lowers both oxygen and moisture permeability. It acts as an invisible, highly effective shield. We highly recommend PVDC for sensitive perishables. Meat, cheese, and specialty products benefit greatly from this coating. It preserves color, texture, and complex flavors over extended periods.
Ethylene Vinyl Alcohol (EVOH) represents another exceptionally powerful option. Manufacturers typically co-extrude EVOH alongside PP or PET layers. EVOH provides one of the absolute highest oxygen barriers available globally. It blocks oxygen ingress almost entirely. We see EVOH heavily utilized in modified atmosphere packaging (MAP). MAP blister designs replace internal oxygen with inert gases like nitrogen. EVOH ensures those protective gases cannot escape. However, moisture actively degrades EVOH performance. Therefore, engineers must sandwich it securely between moisture-blocking layers like PP.
Aluminum Foil (Alu-Alu or Cold Form) offers the ultimate, unbreakable barrier. It blocks completely 100% of light, moisture, and oxygen. Alu-Alu guarantees maximum product preservation. But this extreme performance comes with major design drawbacks. First, consumers cannot see the product at all. Zero visibility often hurts retail appeal. Second, it requires specialized cold-forming machinery. You cannot heat-form aluminum. Cold-forming relies on immense mechanical pressure to stamp the cavities. This process increases tooling expenses significantly. It also severely limits the allowable drawing depth for your packaging design.
Matching specific materials to distinct product types ensures commercial success. Different foods demand entirely different protective environments. Let us explore common food blister packaging applications to understand material pairing better.
Confectionery and gum products require intense moisture barriers. Sugars naturally absorb ambient humidity rapidly. This absorption causes sticky textures, clumping, or white surface blooming. Manufacturers commonly choose PVC heavily coated in PVDC. Alternatively, they use rigid PET paired with specialized foil lidding. These precise combinations lock out ambient humidity effectively, keeping the product crisp.
Fresh produce and deli items prioritize breathability and visual presentation. Consumers buy fresh foods based almost entirely on visual appeal. APET or recycled PET (rPET) dominates this category. We highly recommend applying anti-fog coatings to these specific plastics. Anti-fog treatments prevent condensation buildup inside the refrigerated package. This simple addition keeps the product fully visible in chilled display cases.
Single-serve liquids and condiments face unique physical stresses. They require absolute seal integrity. Puncture resistance is vital. A single ruptured condiment package easily destroys entire shipping pallets. PP handles these aggressive requirements perfectly. High-impact laminates also perform well here. They withstand the immense pressure of vertical stacking and heavy transit vibrations.
When designing custom food blister packaging, always consider your draw ratio carefully. The draw ratio defines exactly how deep you can stretch the heated plastic. Deep cavities naturally cause the material to thin out at the corners. Excessive thinning severely weakens the inherent barrier properties. You must evaluate custom gauge thicknesses based on this geometry. Tailored cavity designs must always respect the chosen material’s physical limits. We advise consulting your thermoforming engineers before finalizing complex, deep-draw shapes.
Navigating modern regulations and environmental mandates feels overwhelming. Yet, it remains absolutely non-negotiable for public food safety. You must address compliance and sustainability aggressively during the design phase.
Regulatory validation always comes first. Any substrate in direct food contact requires strict, documented vetting. In the US, materials must meet FDA 21 CFR requirements. In Europe, EFSA sets the safety standards. You cannot rely on verbal assurances from vendors. Always demand formal Certificates of Analysis (COA). Request comprehensive migration test data from your suppliers. Migration testing proves harmful chemical compounds do not leach into the food under various temperatures. Skipping this vital step risks catastrophic legal liabilities and consumer harm.
The entire packaging industry is rapidly shifting toward sustainable alternatives. However, evaluating Recycled PET (rPET) requires caution. Incorporating post-consumer recycled content presents unique challenges. You might encounter slight discoloration in the plastic. Tensile strength can vary slightly between supplier batches. More importantly, the rPET must undergo rigorous food-grade decontamination processes. You must verify these cleaning protocols directly with your material supplier.
Bioplastics like PLA offer another popular sustainable route. However, you must assess reality versus marketing claims. PLA requires specialized commercial composting facilities to break down properly. Most local municipalities lack this specific infrastructure. If PLA accidentally enters standard recycling streams, it contaminates the PET batch. You must understand your target market's actual waste management capabilities before committing to PLA.
Finally, carefully evaluate your tooling and changeover risks. Switching substrates often forces expensive mechanical changes on the production floor. Transitioning a line from PVC to PET is rarely plug-and-play. You will likely require expensive retooling of your blister seal dies. Heating stations on your thermoforming line will need complete recalibration. Always factor these practical implementation barriers into your initial project timeline.
Choosing the optimal material follows a clear, objective decision logic. It is a precise triangulation of your barrier needs, internal budget constraints, and corporate sustainability mandates. You cannot isolate one single factor without compromising the others. We advise procurement teams to define target shelf-life metrics first. Establish strict OTR and WVTR limits early.
Next, outline your exact machine specifications. Do this before requesting a single supplier quote to avoid mismatched expectations. Your final steps require practical validation. Always request comprehensive material data sheets (MDS). Never assume a plastic's real-world capabilities. Conduct rigorous seal-leak tests under simulated transit conditions. Finally, run small-batch line trials using your short-listed substrates. These physical trials reveal hidden processing issues early, preventing massive production failures later.
A: Food-grade rPET is currently the most practical eco-friendly choice. It utilizes post-consumer waste and is highly recyclable within existing municipal infrastructures. While PLA is technically compostable, it requires industrial composting facilities. Most regions lack this infrastructure, making rPET a more realistic sustainable option for wide distribution.
A: It depends entirely on the plastic type. You can safely microwave Polypropylene (PP) because it possesses a high heat deflection temperature. However, you must never microwave PET or PVC packaging. These materials will warp, melt, and potentially leach harmful chemicals into the food when exposed to high heat.
A: Thermoforming uses targeted heat to soften plastics like PET or PP before vacuum-shaping them into cavities. Cold-forming uses intense mechanical force to press rigid aluminum laminates (Alu-Alu) into shape without applying heat. Cold-forming offers absolute barrier protection but requires entirely different, more expensive tooling.
A: You seal food blister packaging using a heat-sealing process. A machine applies controlled heat and pressure to bond a lidding film (such as aluminum foil, medical-grade paper, or plastic film) to the plastic base web. The lidding film must feature a heat-seal coating chemically compatible with the base material.
